Commercial Savaria Multilift Vertical Platform Lift

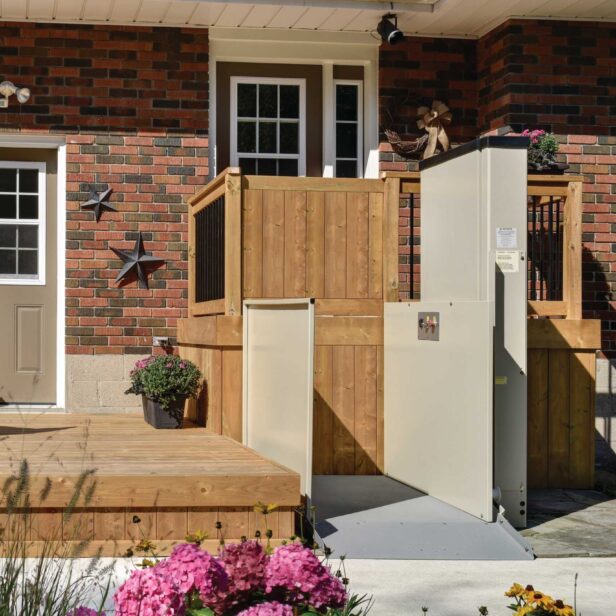

Savaria Multilift Vertical Platform Lift.

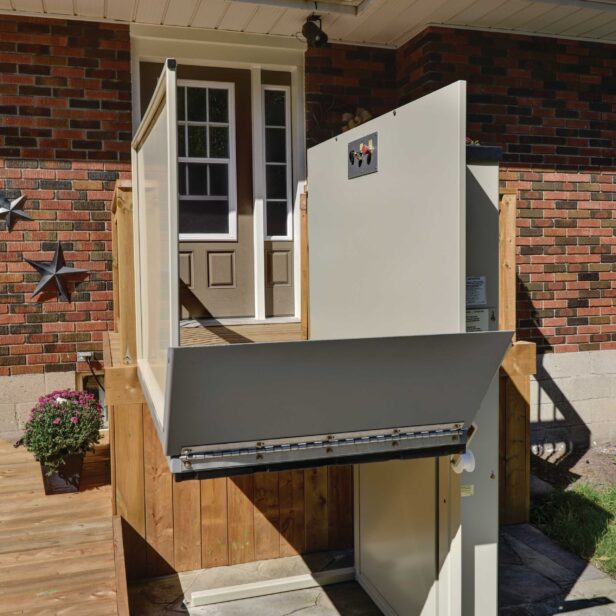

Savaria Multilift Vertical Platform Lift up.

Effortless Accessibility for Decks, Porches, and More

The Savaria Multilift Vertical Platform Lift is engineered for optimal performance in low-rise settings such as decks and porches. Using an ACME screw-drive motor system, it ensures smooth, precise movement without jerking during ascents and descents. With a robust capacity of 750 lbs., the Multilift accommodates individuals with or without wheelchairs or powerchairs. Available in various configurations, including enclosed and mobile units, it offers flexibility to fit different spaces and uses.

Get a Free Consultation

  • Durable frame and construction ensure a safe and sturdy lift that is sure to last
  • ACME Screw Drive system allows for precise vertical movement while minimizing jerkiness and excessive movement
  • Continuous pressure operation, allowing for complete user control over their lift
  • A self-enclosed drive tower makes for easy installation and removal
  • Backed by 101 Mobility’s One-Year Limited Service Warranty as well as the manufacturer’s 36-month parts warranty
  • Included automatic access ramp extends and retracts for easy loading and unloading of power chairs and scooters
  • A non-skid platform coated in zinc allows for smooth transit both up and down the lift
  • Keyed-access ensures that no children or unauthorized individuals will be able to access the lift
  • Capable of lifting up to 750 lbs

Savaria Multilift Vertical Platform Lift
Weight Capacity750 lbs (340 kg)
48″ (121.92 cm), optionally up to 72″ (182.88 cm)
MotorCME screw drive and back-up nut, 1 hp, electronic-free controller
Nominal Travel Speed8 ft/min (0.04 m/s)
Maximum Travel DistancesMobile Configurations are limited to 48” of travel
Power Supply120 VAC, 15 A, 60 Hz, single-phase (must be a dedicated electrical line)

Standard Model

  • Unenclosed Platform Sizes
    • W34” x L48” (864 mm x 1219 mm), Type 2, 3, 4
    • W34” x L54” (863 mm x 1371 mm), Type 2, 3, 4
    • W34” x L60” (863 mm x 1524 mm), Type 2, 3, 4
    • Access Ramp: 16”/406 mm, 24”/610 mm (Quebec, or optional)
    • 36″ wide platform optional
    • Low Profile Aluminum Doors
    • ULC fire rated doors
    • Powered gate and door operators
    • Tempered glass door inserts
    • Acrylic gate inserts
    • Audible lift alarm
    • Grab rail
    • 12-volt DC power option for Residential Applications

Enclosed Model

  • Enclosed Platform Sizes
    • W36″ x L48″ (914 mm x 1219 mm) Type 2, 3, 4
    • W36″ x L54″ (914 mm x 1372 mm) Type 2, 3, 4
    • W36″ x L60″ (914 mm x 1524 mm) Type 2, 3, 4
    • Aluminum, acrylic, or clear tempered glass inserts for the enclosure as well as upper and lower landing gates
    • Aluminum swing-doors
    • ADA Compliance (in the US) Hands-free phone
    • Wired Hand pendant/control
    • Commercial Package (Audible alarm and grab rail)
    • Optional keyless operation
    • 12-volt battery operated version for residential applications

Mobile Model

  • Platform Size: W36″ x L48″ (914 mm x 1219 mm) Type 2
  • Includes 2 platform gates and automatic access ramp

3G Model

  • Platform Size: W36″ x L54″ (914 mm x 1372 mm) Type 2
  • Includes platform gate, lower and upper landing gates

Savaria Multilift Vertical Platform Lift Brochure (English)
Savaria Multilift Vertical Platform Lift Brochure (Canada-Français)
