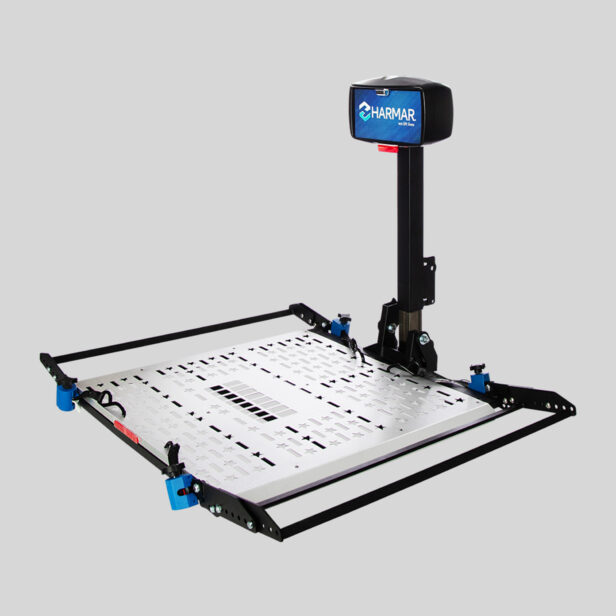

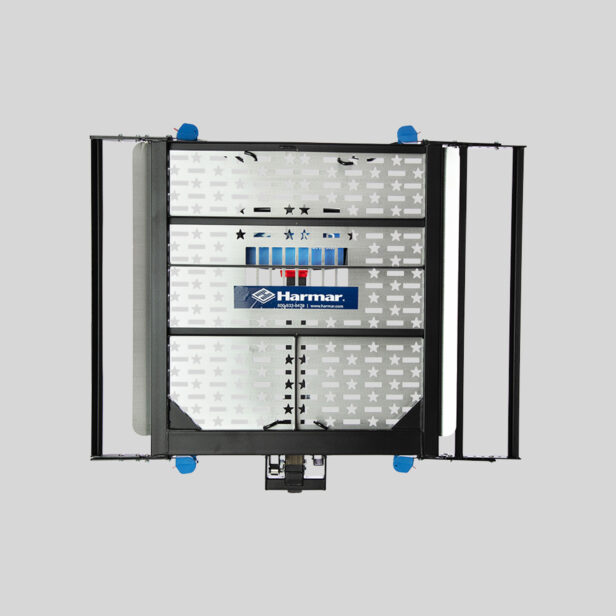

Harmar AL301XL/ AL301XLHD
The Harmar AL301XL and Harmar AL301XL HD are the premier wheelchair lifts for cars, designed for the biggest and heaviest mobility devices. These robust lifts install under the bumper of your vehicle and, with the push of a button, automatically elevate and lower your power scooter or power chair. Whether you need a wheelchair carrier for your car, an electric wheelchair lift for your van, or a wheelchair hitch carrier, the Harmar AL301XL series offers the perfect solution for effortless and secure transport of your mobility device.
| Technical specifications for both models | |
|---|---|
| Platform size | 36” x 39” (914 mm x 990 mm) |
| Maximum cradle extension | 53” (1346 mm) |
| Maximum mobility device wheelbase | 48” (1219 mm) |
| Maximum mobility device width | 35.5” (901.7 mm) |
| Technical specifications for AL301XL model only | |
|---|---|
| Weight capacity | 350 lbs (160 kg) |
| Unit weight | 100 lbs (45 kg) |
| Technical specifications for AL301XL HD model only | |
|---|---|
| Weight capacity | 400 lbs (181 kg) |
| Unit weight | 102 lbs (46 kg) |
Frequently Asked Questions
We offer both vehicle-mounted and hitch-mounted wheelchair carriers for different types of vehicles.
Our wheelchair carrier can be installed on most vehicles, but compatibility depends on the make, model, and year of the vehicle.
Many auto lifts can be transferred to a new vehicle, but it may require additional hardware or adjustments.
